Shacman X6000 Tractor Head

Description

Shacman X6000 Tractor Head
Drive Type	6×4
Weight	Gross Vehicle Weight	≤50
Dimensions	Wheelbase/(mm)	3175+1400
Performance	Maximum speed/(km/h)	45～60/90
Performance	Ground clearance	>314
Engine	Brand	WEICHAI
	Model	WP12.430E50
	Power/(kw/HP)	316kw / 430Hp
	Maximum torque / (N.M)/rpm	2000 N·M
	Displacement/(L)	11.596 L
	Emission standard	Euro V
Gearbox	Brand	FAST
Gearbox	Model	12JSD200T-B
Clutch	Type	φ430 Diaphragm spring clutch
Cooling	Type	Domestic heat sink
Air inlet	Type	Ordinary air filter
Brakes	Type	Drum brake
	Service brake	Double circuit air brake
	Park brake	Rear wheel spring brake
	Auxiliary brake	WEVB engine exhaust brake
Steering	Type	ZF8098 technology, circulating ball steering machine
Chassis	Type	Parallel trapezoidal frame with variable section
Chassis	Dimensions/(mm)	850×300(8+7)
Suspension	Front	Multi-layered leaf springs with 2 Main springs+2 U Bolts
Suspension	Rear	Multi-layered leaf springs with 2 Main springs+2 U Bolts
Axles	Brand	HANDE
	Front axle	7.5T front axle MAN technology
	Rear axle	13T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 4.266
Tires	Type	12R22.5
Fuel tank	Tank capacity/(L)	400L Aluminum tank
Electrics	Type	24V
Electrics	Battery	165Ah Maintenance-free battery
Cab	Type	SHACMAN X5000S Extended High Roof cab
Cab	Equipment	Air main seat, four-point air-suspended cab, electronically controlled automatic temperature-controlled air conditioning, electric window rollers, manual flip, telescopic axle maneuvering, regular 50 saddle, split fenders, 165Ah maintenance-free battery, SHACMAN logo, full English logo.

Product Images

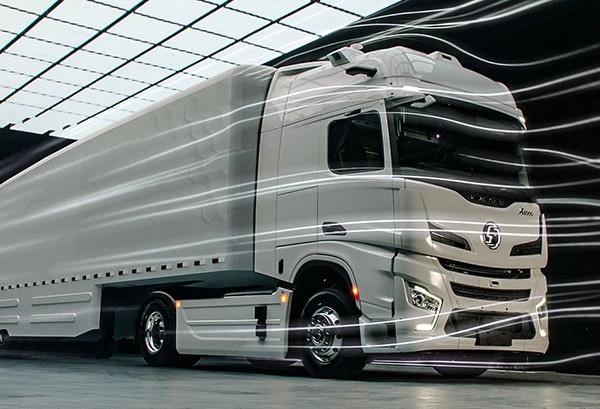

Face and lead the wind

Achieve superior aerodynamics and fuel efficiency with our innovative airflow design. Our vehicle has a low drag coefficient of 0.454, which can improve fuel saving by 2.7%-5.3%. Our dual-guided airflow design consists of an underbody deflector and an adjustable top deflector that can reduce air resistance and enhance stability.

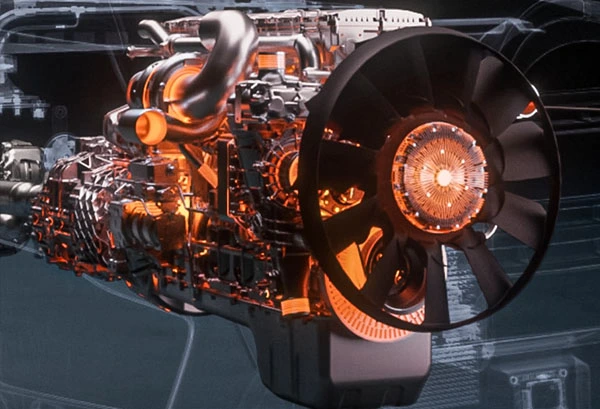

Surging Power

Experience the thrill of our powerful engine that delivers high performance at low revs. The engine also makes the most of every drop of fuel with our smart boosting and high-efficiency fuel injection technology to achieve maximum efficiency. The engine also features a smart temperature adjustment system that uses real-time vehicle data to achieve efficient cooling and optimal operation.

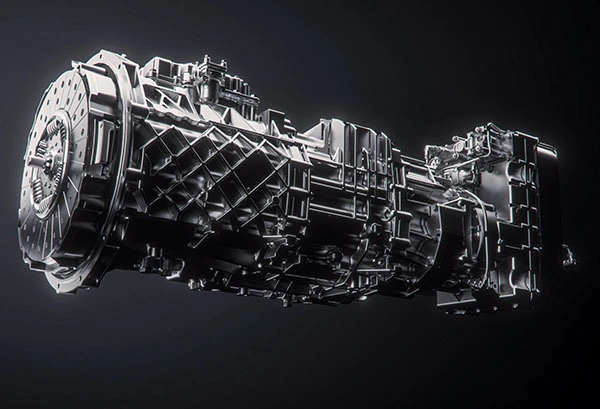

Precision shifting

Enjoy the smooth and precise shifting of our AMT gearbox that features efficient transmission gear technology and modular shift structure. Our gearbox has a refined processing gear that achieves a transmission efficiency of 99.7%, which means less energy loss and more power output. The gearbox also has a modular shift structure that ensures reliable operation and easy maintenance and replacement.

Take a deep breath

The X6000 series air intake system features a tangential intake air filter that ensures super clean air intake and protects the engine from dust and debris. The system also features an air dehumidification that removes moisture from the air and prevents corrosion and icing. Low intake resistance also allows a rated air flow of 2300m³/h, which improves the combustion efficiency and power output of the engine.
