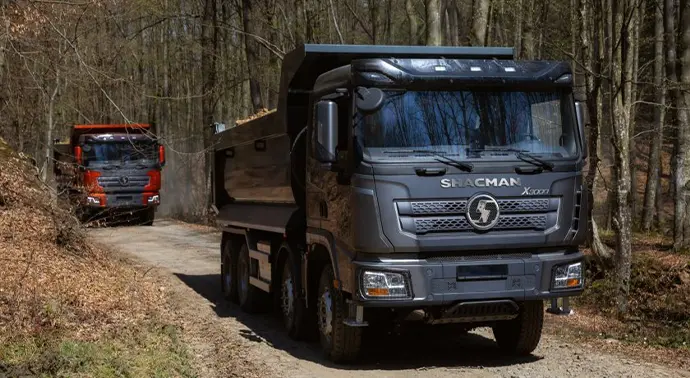

| Shacman X3000 8×4 Tipper Truck | |||
| Traction type | 8×4 | ||
| Drive System | LHD/(RHD is optional) | ||
| Cabin | X3000 Flat Cabin, one sleeper, Air Conditioner | ||
| Engine | Brand | WEICHAI | |
| Model | ISME420 EuroII | ||
| Rated power | 420hp | ||
| Engine displacement | 11.596 liters | ||

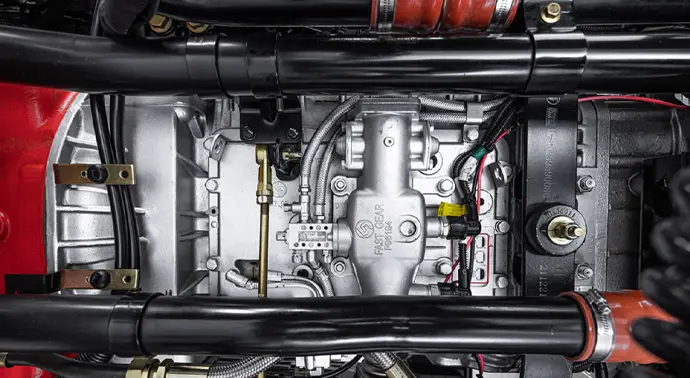

| Gearbox | Fast 12 speeds (12JSD180T) | ||
| Clutch | Ф430 Diaphragm type | ||
| Steering | ZF technology | ||
| Axle | Front | 6.5 Ton STR | |
| Rear | 16 Ton STR double reduction axle, ratio:5.73 | ||
| Max. running speed (km/h) | 77 | ||
| Tire | 12.00R20 | ||
| Fuel tank | 400L | ||
| Kerb weight (kg) | 14200 | ||
| Total mass (kg) | 31000 | ||
| Wheel base (mm) | 1800+3600+1350 | ||
| Overhang (mm) (front/rear) | 1525/1955 | ||
| Track (mm) (front/rear) | 1939/1850 | ||
| Approach / departure angle(°) | 20/33 | ||
| Dump body | Size | 7600x2300x1500 26cbm | |
| Thickness | Bottom 8, front 6, side 4 | ||
| Lifting system | Front lifting | ||
| Overall dimensions（L*W*H） | 10600x2500x3450 | ||
