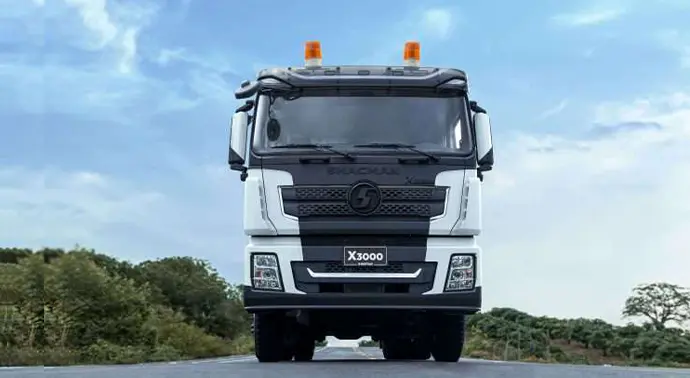

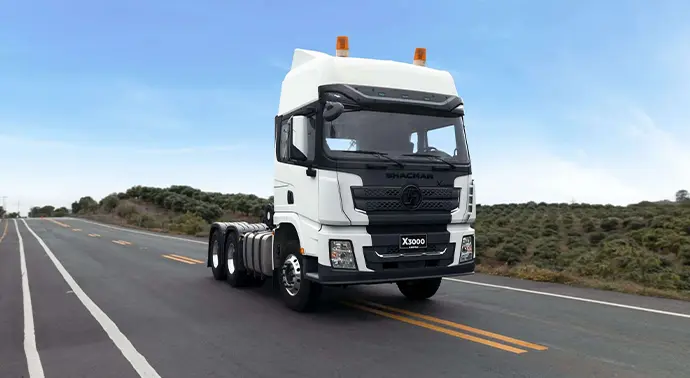

Shacman X3000 6x4 Tractor Truck

Maker: WEICHAI

Overall size：7000x2550x3700mm

TransmissionFAST 12JSD160TA (12 speeds)

Engine380HP

Message

Description

Shacman X3000 6×4 Tractor Truck
Traction type	6X4
Driving type	LHD/RHD
Driver’s cab	X3000 long high roof cabin, 2 seats, two sleepers, air conditioner, upper and side wind deflector, 4 points air suspension, Electrically heated rear-view mirror, electric flip, central locking
Dimension	Wheel base(mm): 3175+1400mm
Dimension	Overall size(mm): 7000x2550x3700mm
Engine	Maker: WEICHAI
	Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling
	Engine model: WP12.380E32 Euro2
	Maximum output: 380HP(280kW)
	Rated speed: 2200rpm
Clutch	EATON 430mm
Transmission	FAST 12JSD160TA (12 speeds)
Front Axle	MAN axle, 7.5T
Rear Axle	MAN single reduction driving axle, 13T*2
Rear Axle	Ratio: 4.111
Frame	(940-850)*300mm
Suspension	Leaf spring
Tyre	315/80R22.5 Tubeless Tyre(10+1 pcs)
Fifth wheel	3.5’(90#)
Fuel tank	600L Aluminium
Electrics	Operating voltage: 24V, negative grounded
Performance	Maximum driving speed: 110km/h

Product Images

High-strength alloy steel High-strength alloy steel

The frame structure consists of improved high-strength alloy steel with a 6000-ton compression strength. This material is integrally stamped, which increases its structural width and resistance to deformation.

Excellent electrical system

The X3000 electrical system has passed the rigorous testing with its enhanced electrical components. It has achieved a remarkable performance of over 12 million kilometers of cumulative testing.

Impact resistance Impact resistance

The cab utilizes precision robotic welding to ensure better impact resistance and increasing safety. It has complied with the latest European crashworthiness standard of “ECE-R29”.
