Shacman M3000S 8x4 Dump Truck

Curb Weight(kg)8,070kg

Wheelbase(mm)3175+1350mm

Gross Weight(kg)25,000kg

Engine ModelWeichai WP11S460E508

Message

Description

Shacman M3000S 8×4 Dump Truck
Logistics type	Concrete
Distance(km)	≤50
Road type	Paved roads
Drive	8×4
Max weight(t)	≤50
Crusing speed/Max speed(km/h)	85
Loaded speed(km/h)	45~60
Vehicle model	SX5319GJBMC326TLF1
Engine	WP10HNG350E60
Emission standard	Euro Ⅵ
Displacement	11.596L
Rated output	257kW
Max.torque	1800N·m
Transmission	10JSD160T
Clutch	430
Frame	（970-850）×300(8+5)
Front axle	MAN 5.5T
Rear axle	16T MAN double reduction 5.262
Tire	12.00R20
Front Suspension	Multi leaf springs
Rear Suspension	Multi leaf springs
Fuel	Liquefied natural gas
Capacity of the fuel tank	400L ( Aluminum shell )
Battery	165Ah
Dimensions(L×W×H)	10145×2550×3990
Volume(m³)	12
Wheelbase	1800+3100+1400
Approach/Departure angle(°)	20/18
Max.gradeability(%)	34

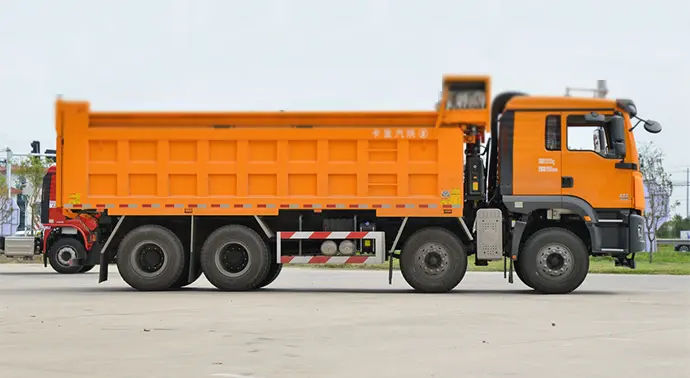

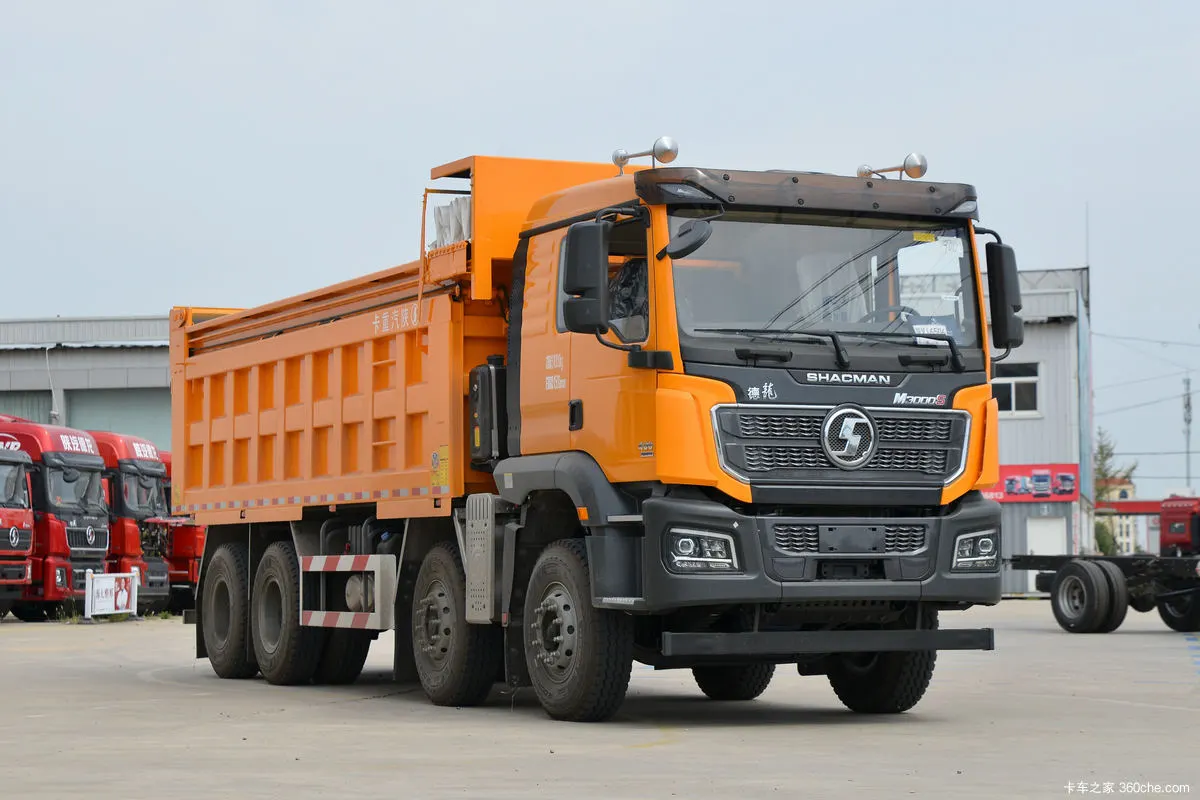

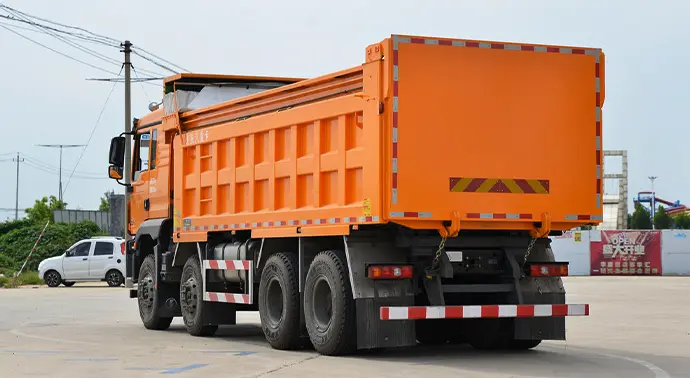

Product Images

characteristics:

* Engine: Harnesses the strength of a 11.6-liter, 6-cylinder diesel powerhouse, delivering approximately 460 horsepower. The engine is proudly manufactured by WEICAI, renowned for its robust performance. * Transmission: Outfitted with a manual transmission, the model FAST S13M0Q ensures smooth and responsive gear shifts, optimizing control and efficiency.

Fuel Tank Capacity:

* Cabin: Typically available in either a sleeper or day cab configuration, designed to provide essential comfort and convenience for long-distance operators. * Fuel Tank Capacity: Ample 400L, facilitating extended journeys with fewer refueling stops. * Brakes: Equipped with highly responsive disc brakes and an Anti-lock Braking System (ABS) for enhanced safety and control. * Recommended Usage Scenario: Ideal for road transport, especially suited for long-distance hauls.

Vehicle features:

Boasts high cost performance, exceptional durability, ease of maintenance, and outstanding reliability. Additionally, parts are readily available, and it adapts well to various conditions.
