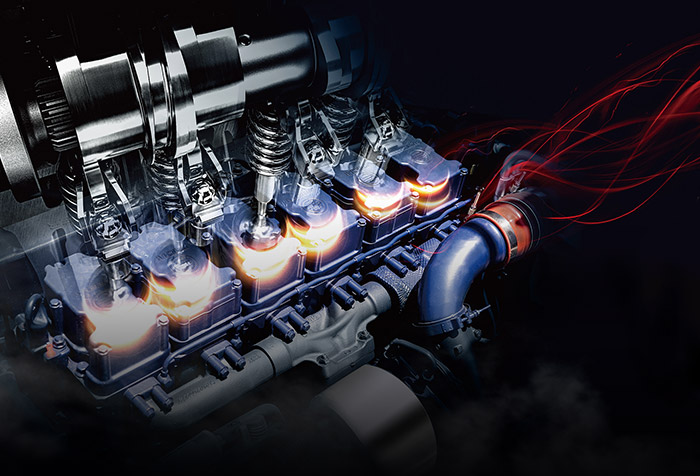

440HP of robust power 440HP of robust power
The H3000 is powered by engines from WEICHAI and CUMMINS, renowned global leaders in diesel engine manufacturing, offering up to 440HP of robust power.
Description
| Shacman H3000 6×4 Tractor Truck | ||
| Model | SX4255HT324C | |
| Max. running speed (km/h) | 105 | |
| Drive System | 6×4 | |
| Overall Dimensions （L*W*H）(mm) | 6785×2490×3560 | |
| Approach / departure angle (°) | 20 / 60 | |
| Curb weight (kg) | 8800 | |
| Total mass (kg) | 25000 | |
| Wheel base (mm) | 3175+1400 | |
| Overhang (mm) (front/rear) | 1485/725 | |
| Track width (mm) (front/rear) | 2011/ 1800 | |
| Engine | ISME385 30 ( Cummins Engine, Euro 3) | |
| Horsepower | 385 hp | |
| Gearbox | 12JSD200T-B (FAST GEAR), manual, 12F & 2R | |
| Clutch | Ф 430 Diaphragm type | |
| Steering | ZF technology | |
| Cab | H3000 cabin with A/C & single sleeper | |
| Axle | Front axle | MAN 7.5T |
| Rear axle | 13 Ton MAN driving axle , final ratio 3.866 | |
| Fifth wheel | 90# | |
| Oil tank(L) | 400L (ALLOY) | |
| Tyre（radial tyre） | 12.00R20(10+1 spare tyre) | |
| Optional | Weichai engine | |
| Hydraulic retarder | ||
| 1000L fuel tank | ||
| JACOB Engine Brake | ||
Product Images
Cab frame
The integration of stamping and forming processes for the cab frame, coupled with advanced robotic welding technology, significantly improves the structure’s load-bearing capabilities and overall stability.
Flat chassis
The vehicle’s flat chassis layout is strategically designed to provide a minimum ground clearance of 560mm. This design, coupled with approach and departure angles exceeding 28 degrees, significantly enhances the vehicle’s trafficability, allowing for superior ease of movement across diverse terrains.
Paint coating
The vehicle’s paint coating, encompassing the cab, frame, and chassis, has undergone a comprehensive upgrade. Enhancements have been made to augment the gloss finish, alongside a substantial increase in weather resistance, ensuring prolonged durability and aesthetic appeal.
Comprehensive upgrade
Equipped with 700-liter aluminum alloy fuel tank, the H3000S not only hauls more but goes further. The vehicle is equipped with side panel protection, water tank protection and oil pan protection. A fuel filter element is added to effectively protect the key assemblies of the vehicle.

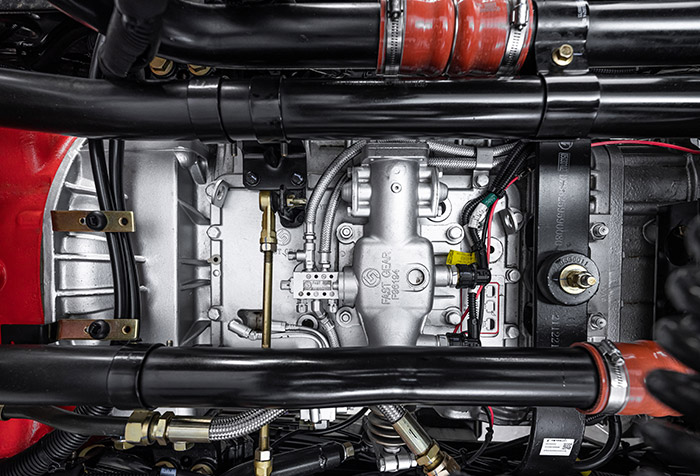

FAST gearbox FAST gearbox
FAST gearbox, provided by the world’s preeminent transmission supplier, ensures an optimal balance between economic fuel consumption and dependable performance.

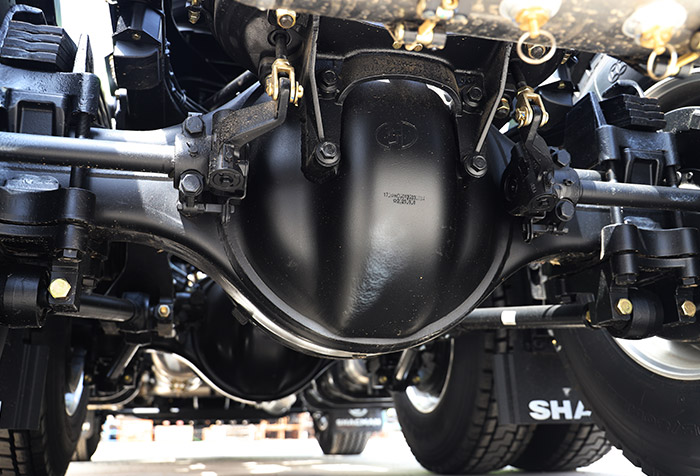

HANDE axle
HANDE axle incorporates state-of-the-art technology, boasting exceptional load-bearing capabilities and high-torque output, underpinning the vehicle’s strong performance.
