3 Axle Oil Tanker Trailer Price for Sale In Ghana

Description

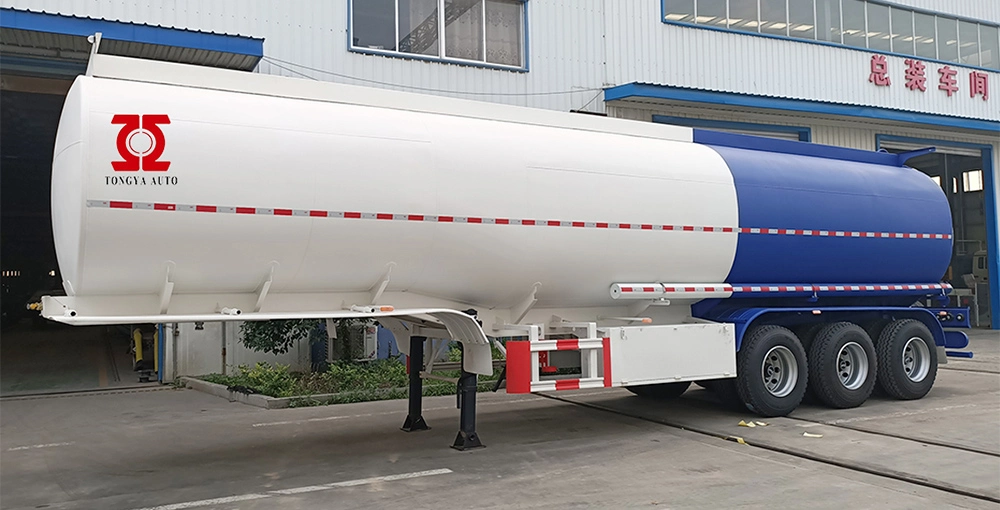

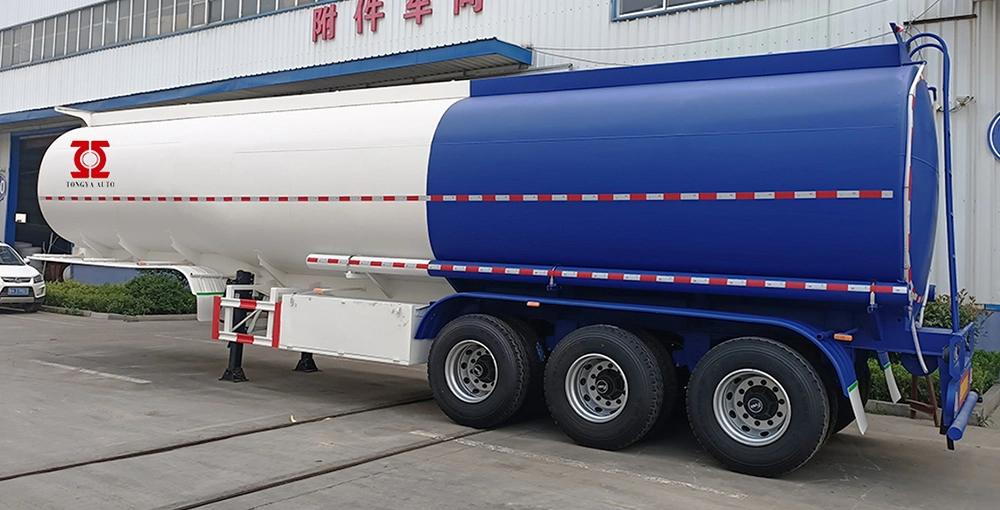

Tanker Trailers for Sale in South Africa is one of the main tools for transporting liquid.

Tanker Trailers for Sale in South Africa is unique in design and reasonable in structure. The tank body adopts advanced three-dimensional design and is built with high-quality materials to ensure the strength and stability of the tank body. At the same time, the tank is equipped with multiple anti-wave plates, which can effectively inhibit the inertia of the liquid when braking, reduce the impact of the liquid on the tank, and improve the safety of the transportation process.

Tanker Trailers for Sale in South Africa Advantages:

The tank is made of high-strength carbon steel, which can withstand greater pressure and impact to prevent liquid leakage;
Equipped with safety equipment such as emergency cut-off valve and safety valve, which greatly improves the safety of the transportation process;
Equipped with specialized unloading equipment, which can quickly complete the liquid loading and unloading operations.

Specifications:

Weight:
	Tare weight	10.8T
	Payload	≤42T
Specification:
	Outside dimension(LWH)	1160025503780mm (Changeable)
	Axle No./weight	3axles,loading 16T/axle，FUWA brand
	Suspension	Leaf spring suspension,10pcs90mm13mm Heavy duty tri-axle suspension with equalizers, American design (high-strength type)
	King pin	90#JOST brand
	Landing gears	JOST A300C
Wheel:
	Tire	12R22.5,13pcs,TRIANGLE brand(including one spare tire)
	Rim	9.0*22.5,13pcs(including one spare tire)
	Spare tire carrier	2 spear tire carrier
Tank assembly:
	Compartment	3 sets
	Front/Rear end plate	Material:carbon steel Thickness:6mm
	Tank body	Material:carbon steel Thickness:5mm
	Wave-proof plate thickness	Diameter:4inch
	Manhole cover	Diameter:500mm Material:Europe Standard Number:3
	Discharging valve	Diameter:500mm Material:Europe Standard Number:3
	Bottom safety valve	Aluminum alloy 4 inch Europe Standard
	Discharging horse	Diameter:3 inch Type:Rubber hose,2pcs
	Cat walk	Standard

Fuel Tanker Trailers for Sale

We are Chinese leading professional manufacturer from 1982, you can customize your own trailers, we design and manufacture as per your exact requirements.The tanker body welded by advanced large-scale special welding machines automatically.

Oil Tanker Semi Trailer

Water filled test ensuring the tank's high sealed and avoiding the oil leaking.We adopt famous brand parts for our trailers, ensuring good character.

The Most Powerful Factory in China

Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.

We have our own production workshop

We have first class fully automatic laser cutting machine, Laser locating welding machine, fully automatic welding robot, large-sine Bending Machine and Board Press machine in china and tanker body automatic welding tipper, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and 1200 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipment.
