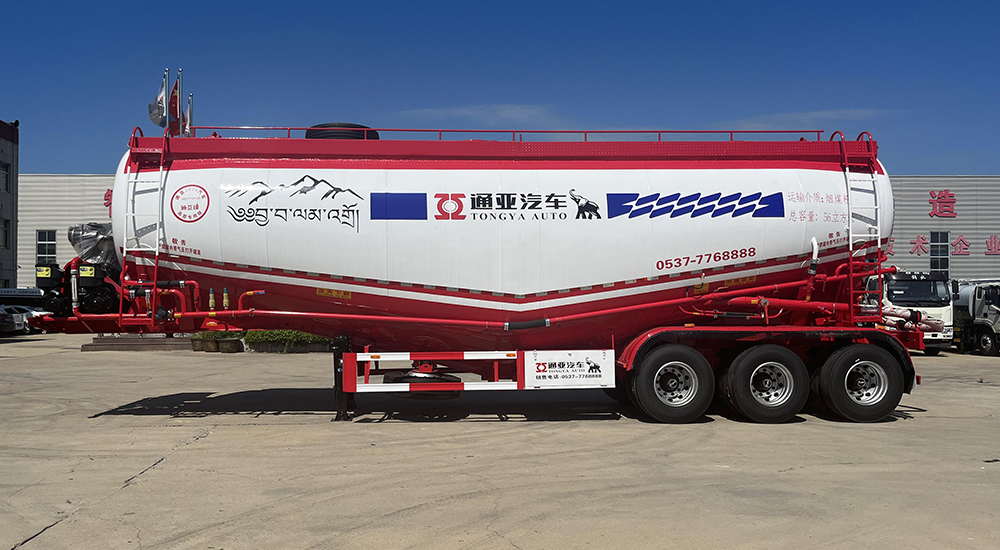

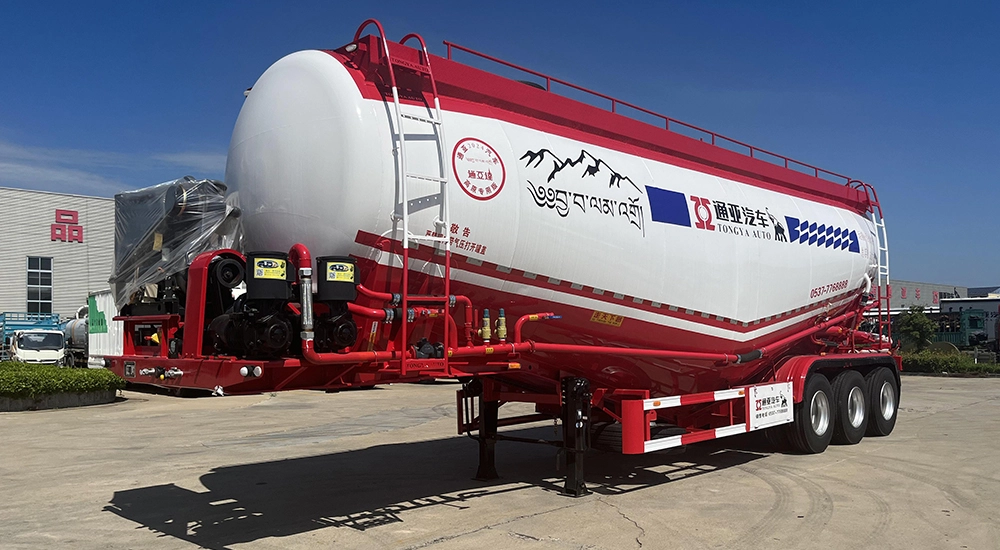

Cement tanker trailer is equipped with air compressor, engine and compressor, which makes it more convenient to unload the powder material.
Cement Tanker Trailer Parameters
| Weight: | Tare Weight | 13T |
| Loading capacity | 6 5T | |
| Dimensions: | Dimension | 13000×2500*3800mm (The final dimensions depend on the final design drawings) |
| Tanker capacity | 56m3 (56000L) | |
| Tanker body: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Tanker body | The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel | |
| Bottom chassis | High strength Q345B steel | |
| Tanker shape | “V” shape | |
| Silo | 1 silo | |
| Manhole: | 3 pieces, (Diameter is 500mm) | |
| Discharge mouth | 4 inch Discharge mouth | |
| Safety pressure valve | Standard | |
| Discharge hose | 8m with Hose carries, the length is according to customer requirement | |
| Air compressor | 12m3 double-cylinder air compressor, Bohai brand | |
| Engine | Diesel Engine,Weichai 4102 engine | |
| Rear ladder and handrail | Standard | |
| Retention volume | <0.3% |
