fuel transport tanker truck

Description

Product Name	Fuel Transport Tanker Truck
Overall dimensions	10400×2500×3800(mm)
GVW	35000Kg
Total net weight	5200Kg
Loading capacity	29800Kg
Tank capacity( CBM )	30000L to 60000L
Medium	Fuel Such As: Gasoline, Kerosene, Diesel and Jet Fuel
Tank body thickness(mm)	Stainless Steel 5182 5mm steel
End plate	Stainless Steel 5182 6mm steel
Compartment	2-6 As Customer Need
Chassis brand	TONGYA
Approach/departure angle	/19°
Tire specification	11.00R20 12PR,12R22.5 12PR
Transmission	Manual
Axle Number	2
Axle Brand	BPW/FUWA/ZY/ L1/HO’S/ SAF/ PDME,13ton Axle
Manhole covers	500mm manhole cover .3 sets with 3 breather valve.
Discharge Valve	4’change into 3’
Dischage Pipe	4’seamless steel tube
Discharge Valve Vox	Totally-enclosed
Spill Discharges	1at the rear
Bottom Valve	1 Set
Rear Ladder	Dismountable
Walkway	On the top
Top Ladder	Standard
Pedal	Anti-Skid Pedal
Color and Logo	As Customer Need
Standard Configuration	Chassis,Arc-shaped Body,Sub Frame,Rear Lifting Part,Loading Bunker,Pushing-out Plate,Sewage Tank,Climbing Ladder

Customized Services

Customized Oil Transport Tank Semi Trailer Fuel Delivery Tankers for Sale Large Capacity Oil Tank Trailer

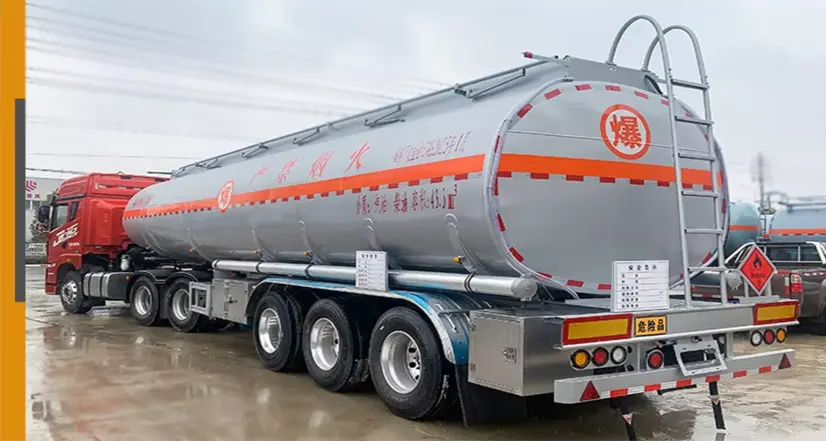

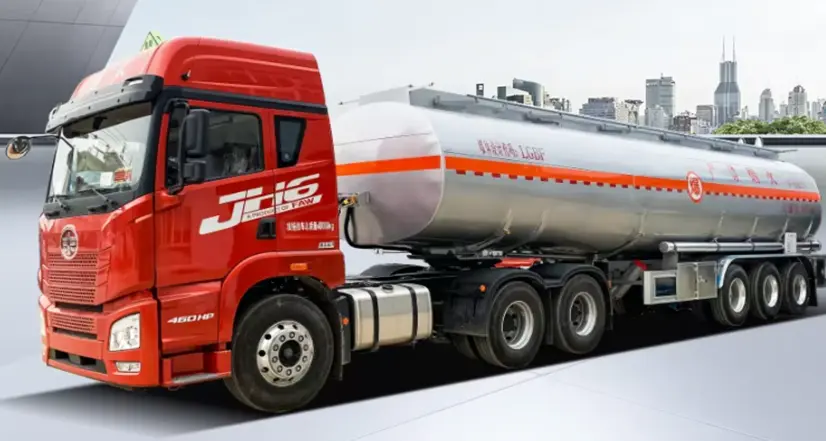

Fuel Transport Tanker Truck

Tanker trailer is also known as tanker, highway tanker, etc. It is mainly used for transportation and storage of oil products suchas petroleum derivatives, gasoline, diesel, crude oil, lubricating oil and coal tar. Tanker trailers are widely used in oil depots, gas stations, oil fields, chemical plants, food plants, asphalt plants, etc.

Aluminum, Carbon Steel, And Stainless Steel

The tank body of fuel tanker trailer can be made of different materials such as aluminum, carbon steel, and stainless steel. The tank is built with multi-channel reinforced anti wave baffle plate, and the lower end of the baffle plate is designed with through holes to reduce the impact of fuel in the tank and improve the strength of the tank.

The Most Powerful Factory in China

Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.
